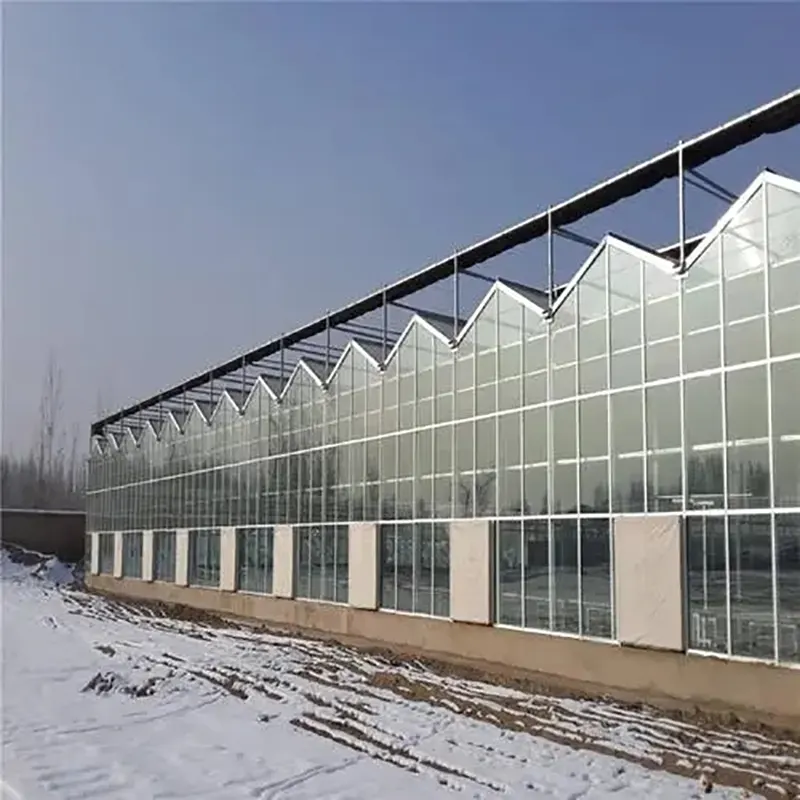

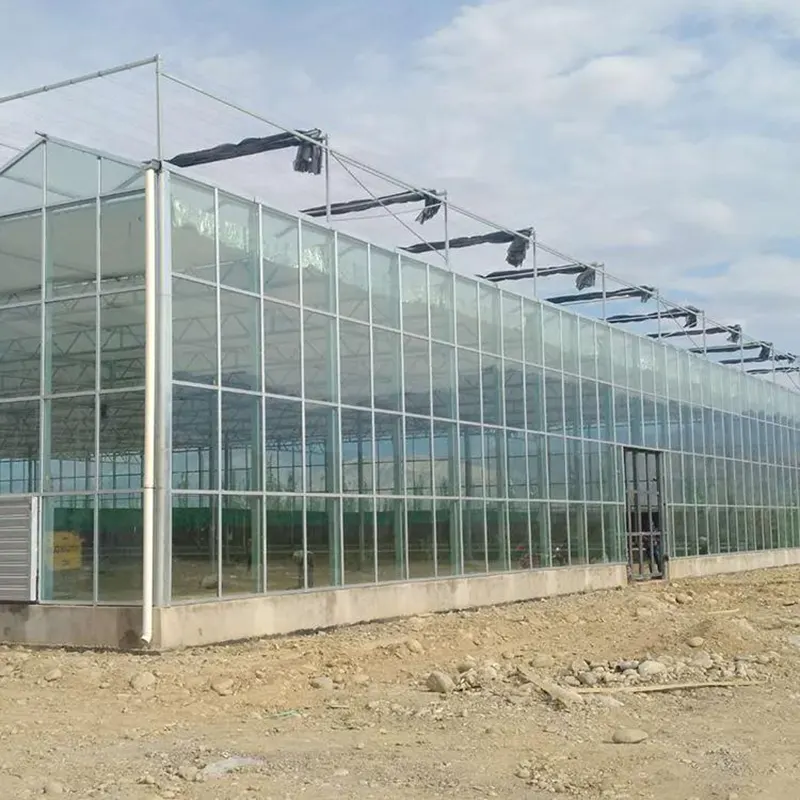

Single-Layer Glass Multi-Span Greenhouse

For agricultural projects in moderate climates where high natural light and a rigid, transparent enclosure are important, the Single-layer Glass Multi-span Greenhouse offers a straightforward glass greenhouse configuration. Ruize Steel, with its own factory and export supply capabilities, can adjust the greenhouse dimensions, glazing structure, ventilation, shading, and cultivation systems according to site conditions, crop requirements, and project scale.

The greenhouse uses single-layer tempered float glass on the roof and surrounding walls, combined with a reinforced hot-dip galvanized steel frame. This configuration provides a clear growing environment, high natural light transmission, a neat architectural appearance, and stable enclosure performance for commercial cultivation and agricultural display applications.

Compared with PC panel greenhouses, glass provides higher light transmission and maintains its optical clarity without the same long-term yellowing characteristics associated with some polymer coverings. Compared with double-glazed glass systems, the single-layer configuration has a simpler structure, lower weight, and a shorter installation process, making it suitable for standard agricultural parks and projects with moderate environmental-control requirements.

Product Features

1. High-Transmission Tempered Float Glass

The roof and surrounding walls use tempered single-layer float glass manufactured for greenhouse applications. The glass is heat-treated to improve safety and resistance to ordinary outdoor impact.

• High light transmission: Light transmission can reach more than 90%, allowing natural light to enter the greenhouse efficiently and supporting crop photosynthesis.
• Stable optical performance: Glass has stable chemical properties and does not normally yellow or degrade in the same way as flexible film and some polymer coverings.
• Smooth and easy-to-clean surface: The glass surface is smooth and less prone to retaining dust. Rainwater can naturally wash away surface dirt.
• Tempered safety glass: When broken, tempered glass generally fragments into smaller granular pieces rather than long sharp shards, improving safety during agricultural operations.

Under suitable outdoor conditions, greenhouse glass can provide a service life of more than 10 years, depending on installation, climate, impact exposure, and maintenance.

2. Reinforced Hot-Dip Galvanized Steel Structure

The main frame uses reinforced carbon steel components that undergo surface preparation, rust removal, and hot-dip galvanizing for improved corrosion resistance.

The galvanized structure is designed to withstand normal outdoor exposure, including rain and moderate salt-spray conditions when appropriately specified. Standardized multi-span modules use bolted connections, reducing the need for on-site welding and simplifying assembly.

The structural system can be designed according to local wind and snow loads. For ordinary agricultural environments, it can be configured to handle common wind, light snow, and frost conditions.

The large-span multi-span layout provides a spacious and organized growing area that can accommodate small agricultural machinery, fertigation systems, shading equipment, and ventilation systems.

3. Standardized Sealing Structure

Dedicated aluminum profiles and weather-resistant sealing strips are used at the glass joints to form a coordinated enclosure system.

The sealed structure helps reduce uncontrolled air and water leakage while making it easier to manage temperature and humidity inside the greenhouse. The Single-Layer Glass Multi-Span Greenhouse can be equipped with external shading, roof ventilation windows, circulation fans, fertigation, and basic environmental-control equipment.

4. Moderate Configuration and Broad Applications

As a basic glass greenhouse structure, the single-layer glazing configuration provides a balance between transparency, structural durability, and project complexity.

It is suitable for temperate and subtropical regions with relatively moderate year-round temperatures and limited prolonged periods of extreme cold or heavy snow.

Typical applications include agricultural demonstration parks, medium-sized flower nurseries, sightseeing and picking farms, premium vegetables, seedling production, and other commercial cultivation projects where clear natural light and a rigid greenhouse enclosure are required.

Optional Supporting Systems

1. Moderate Climate Applications

• Side ventilation windows
• Roof ventilation windows
• External shading nets
• Air circulation fans
• Basic drainage systems

2. High-Temperature Summer Areas

• Internal shading systems
• Wet curtain and fan cooling systems
• Insect-proof screens
• Additional ventilation equipment

3. Nursery and Premium Crop Production

• Integrated fertigation systems
• Basic heating equipment
• Environmental monitoring instruments
• Temperature and humidity control equipment

Supporting systems can be selected according to local climate, crop type, greenhouse size, and the desired level of environmental control.

Quality Control and Export Packaging

Ruize Steel applies inspection throughout the major stages of greenhouse production, including steel forming, galvanizing, glass tempering, sealing components, structural assembly, and final packing.

For overseas shipments, steel components are protected with anti-corrosion wrapping, while glass panels are secured with dedicated corner protection and reinforced wooden frames. The packaging is designed for long-distance sea freight and handling to reduce the risk of breakage, impact, scratches, and deformation.

The components are organized according to the greenhouse structure and installation sequence to support safer transportation and more efficient assembly at the project site.

After-Sales Service and Global Support

• Complete greenhouse construction drawings
• Step-by-step installation videos and written instructions
• 24/7 online technical support
• Remote assistance for installation and equipment commissioning
• Long-term supply of original steel components
• Replacement tempered glass and sealing materials
• Technical support for maintenance and system upgrades

Why Choose Ruize Steel Single-Layer Glass Multi-Span Greenhouse?

1. High and Stable Light Transmission

Glass provides high natural light transmission and maintains stable optical performance over long-term outdoor use when properly installed and maintained.

2. Tempered Glass for Safer Agricultural Use

Tempered glass is processed for improved safety characteristics compared with ordinary untreated glass. In the event of breakage, it generally forms smaller granular fragments.

3. Practical Basic Glass Greenhouse Structure

The single-layer glazing configuration provides a simpler alternative to more complex double-glazed greenhouse systems, making it suitable for standard commercial and demonstration projects in moderate climates.

4. Modular Assembly

The standardized bolted structure helps simplify installation and can shorten the construction process compared with systems requiring more complicated on-site fabrication.

5. Factory-Based Project Supply

Ruize Steel can provide greenhouse structures, glass panels, supporting systems, installation documentation, and project-specific configurations for overseas agricultural applications.

FAQ

1. What climates are suitable for a single-layer glass greenhouse?

It is suitable for temperate and subtropical regions with relatively moderate temperatures, limited prolonged extreme cold, and low to moderate snowfall. In high-latitude areas with severe winter conditions or frequent heavy snow, additional insulation and heating systems may be required.

2. What is the main difference between single-layer and double-glazed glass?

Single-layer glass provides high light transmission and a simpler, lighter structure, but it does not have the insulating air layer found in double glazing. Double-glazed glass offers better thermal insulation and is more suitable for colder climates where heat retention is a priority.

3. How long can tempered greenhouse glass be used?

Under normal outdoor conditions, properly installed greenhouse glass can provide a service life of more than 10 years. Actual service life depends on glass specification, climate, mechanical impact, installation quality, and maintenance.

4. How can winter thermal performance be improved?

Internal insulation blankets, heating equipment, and other temperature-control systems can be added to improve thermal conditions during colder periods. The required configuration depends on the local winter temperature, crop type, and greenhouse design.

5. Does the greenhouse support custom dimensions and agricultural park planning?

Yes. Greenhouse span, bay spacing, eave height, overall dimensions, ventilation configuration, shading systems, and other supporting equipment can be adjusted according to land area, terrain, crop type, climate, and project requirements.

6. Is tempered greenhouse glass easy to break?

Tempered glass has improved mechanical strength compared with ordinary glass and is designed to provide better resistance to common outdoor impacts. However, glass can still break under sufficiently strong impact, so structural design and installation should follow the local weather and safety requirements.

7. What crops are suitable for this greenhouse?

The greenhouse can be used for premium fruits and vegetables, flowers, nursery production, sightseeing and picking crops, medicinal plants, and other crops grown under moderate climatic conditions.

8. Is bulk overseas procurement available?

Yes. Ruize Steel can supply complete greenhouse structures and supporting components for agricultural parks, distributors, contractors, and larger overseas projects. Project support can include customized design, production coordination, export packaging, installation documentation, and technical assistance.
