Ruize Steel is a China manufacturer of Film Rain Shelters for orchard cultivation, offering practical rain-protection structures for grapes, blueberries, cherries and other fruit crops. Designed with film-covered roofs and open sides, these shelters help reduce direct rainfall on plants and fruit while maintaining natural ventilation. Customized dimensions and structural configurations are available for different orchard layouts and growing requirements.
Two main configurations are available: grape rain shelters with higher arches and wider spans, and blueberry rain shelters with narrower spans suited to row planting. Both options can be configured with galvanized steel frames, appropriate film coverings and optional accessories according to local climate and crop requirements.
The film-covered roof helps protect fruit and foliage from direct rainfall, while the open sides allow natural airflow. This arrangement helps reduce prolonged fruit wetness and may lower the risk of rain-related fruit cracking, rot and fungal diseases when combined with appropriate orchard management.
The grape model features a higher arch and wider span to accommodate vine growth, trellising systems and wider planting rows. The blueberry model uses a narrower layout suited to low-growing shrubs and individual planting rows, helping avoid unnecessary structural materials.
The blueberry shelter can be configured with an openable roof film, allowing growers to adjust rain protection according to weather conditions. Optional manual or electric film-rolling systems can also be selected for convenient operation.
The hot-dip galvanized steel frame is designed for outdoor agricultural conditions. Additional cross-bracing and anchoring components can be specified for exposed orchards, while adjustable column configurations may be considered for sites with varying ground levels.
The simple frame structure supports straightforward assembly and can be customized to match existing orchard rows. Modular components can be packed for shipment, making the shelters suitable for domestic and overseas fruit-growing projects.
The grape and blueberry models differ in height, span, ventilation and crop layout. The following table provides a reference for selecting a suitable configuration.
| Comparison Item | Grape Rain Shelter | Blueberry Rain Shelter |
|---|---|---|
| Structure Height | Higher arch with a shoulder height of approximately 2.2–3 m, allowing space for vine growth and orchard operations | Compact arch with a shoulder height of approximately 2–3 m, configured for low-growing blueberry shrubs |
| Single-Span Width | 4–6 m, suitable for wider planting rows in grape orchards | 2–3 m, suited to single-row blueberry planting |
| Ventilation Design | Fully open sides for natural cross-ventilation | Openable roof film for adjustable rain protection and sunlight exposure |
| Wind-Resistance Configuration | Multiple horizontal braces for reinforcement in exposed orchard areas | Basic horizontal fixing for smaller planting areas, subject to local wind conditions |
| Crop Compatibility | Vine crops using V-shaped trellises or overhead trellis systems | Low-growing berry crops, including row-planted or container-grown blueberries |
| Orchard Operations | Layout designed to accommodate routine vine management and winter pruning practices | Lightweight, removable components can facilitate soil loosening and fertilization between rows |
| Optional Accessories | Rain-covering film and optional bird netting | Optional insect netting and bird netting for additional crop protection |
| Relative Material Use | Higher steel consumption per unit area, with a moderate overall cost level | Lower steel consumption and a more economical structure for narrow-row planting |
| Main Advantage | Higher growing space for vines and large orchard layouts | Compact, flexible coverage for protecting specialty berries from rainfall |
Film Rain Shelters are suitable for commercial grape, blueberry and cherry cultivation, as well as other fruit-growing projects that require protection from direct rainfall. They are particularly useful in regions where frequent rain can increase fruit cracking, rot and disease pressure.
By keeping the sides open for natural ventilation, the structure can provide rain protection without fully enclosing the orchard. The final configuration should be selected according to crop variety, planting density, local rainfall and wind exposure.

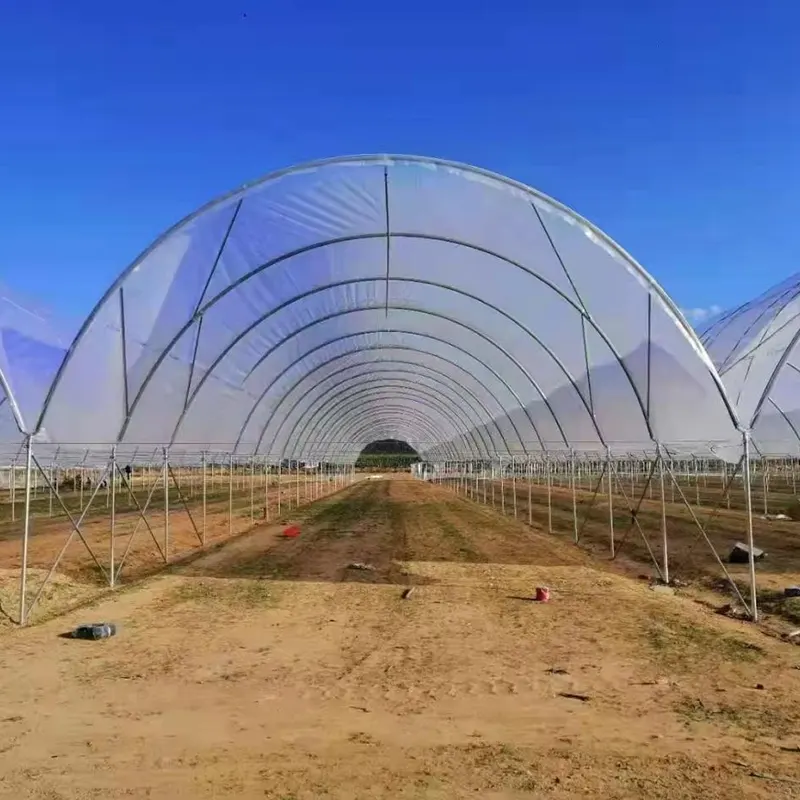

Choose the grape rain shelter with an approximate shoulder height of 2.2–3 m and a span width of 4–6 m. The higher structure provides space for vine trellises, pruning and harvesting operations.
Choose the narrower blueberry configuration for single-row planting. An openable roof film can provide rain protection during wet weather and allow greater exposure to natural rainfall and sunlight when conditions permit.
Prioritize effective drainage, suitable film fixing and additional structural bracing where necessary. Exposed orchards may require reinforced frames, stronger ground anchors or other measures based on local design wind speeds.
The manufacturing process for Film Rain Shelters includes inspection of galvanized steel tubes, CNC bending of frame components, punching of dedicated connectors, corrosion-protection touch-ups where required, structural checks, accessory sorting and standardized packaging for shipment.
Install the roof film evenly with an appropriate slope to allow rainwater to drain away efficiently. Avoid loose or sagging sections that may collect water.
Keep the sides sufficiently open for natural airflow. Fully enclosing the shelter may increase humidity and reduce the ventilation benefits of the design.
Select a height that accommodates the mature tree canopy and orchard equipment without unnecessarily obstructing sunlight.
For exposed sites, check the ground anchors, frame connections and film fasteners before periods of strong wind. Add suitable bracing and anchoring according to the structural design.
Ruize Steel offers grape and blueberry rain shelter configurations with dimensions matched to different crop layouts. The structure, covering and optional accessories can be selected according to the planting rows, local weather and orchard management practices.
Customized sizes and modular packing are available for suitable projects. For overseas orders, the required specifications, component quantities, packaging and installation arrangements can be confirmed before production and shipment.
They are generally designed differently. Grapes need greater height and wider spans, while blueberries usually suit narrower structures. Customization should follow the crop layout.
The film can be removed during dry periods when greater exposure to sunlight is preferred. The steel frame can remain in place if it is suitable for year-round outdoor use.
Yes. Adjustable columns and additional bracing may be considered to accommodate uneven ground, subject to site assessment and structural design.
Yes. Both models can be configured with manual or electric systems. The grape model can use side roll-up film, while the blueberry model can use an openable roof covering.
The stated service life is over 10 years under suitable outdoor conditions. Durability depends on coating quality, local climate and maintenance, particularly in coastal environments.
Small orders and bulk procurement can be discussed according to the required configuration and production arrangements.
The grape model suits larger vine orchards, while the narrower blueberry model is better suited to compact berry-growing layouts. Confirm local rainfall, wind exposure and planting dimensions before ordering.
The open sides allow natural light and airflow. For the blueberry model, the roof film can be opened when conditions permit, helping increase exposure to natural sunlight.
Yes. The frame dimensions can be matched to existing tree rows, provided the layout, foundations and installation method are suitable.
Yes. Custom configurations can be considered for cherries, citrus, kiwifruit and other fruit crops, with height and span adjusted to the planting system.
