Grape Rain Shelter

The Grape Rain Shelter is designed around a specific problem in grape production: prolonged rainfall can wet fruit clusters and leaves, increase the risk of diseases such as downy mildew and white rot, and contribute to fruit cracking. Ruize manufactures and supplies this structure from China for vineyards that need a practical overhead rain-protection system without fully enclosing the growing area.

Unlike a conventional greenhouse intended to create a fully controlled indoor growing environment, this shelter mainly protects the grape canopy and fruit zone from direct rainfall while keeping the sides available for ventilation. It can be planned for large vineyards as well as smaller specialty fruit-growing sites.

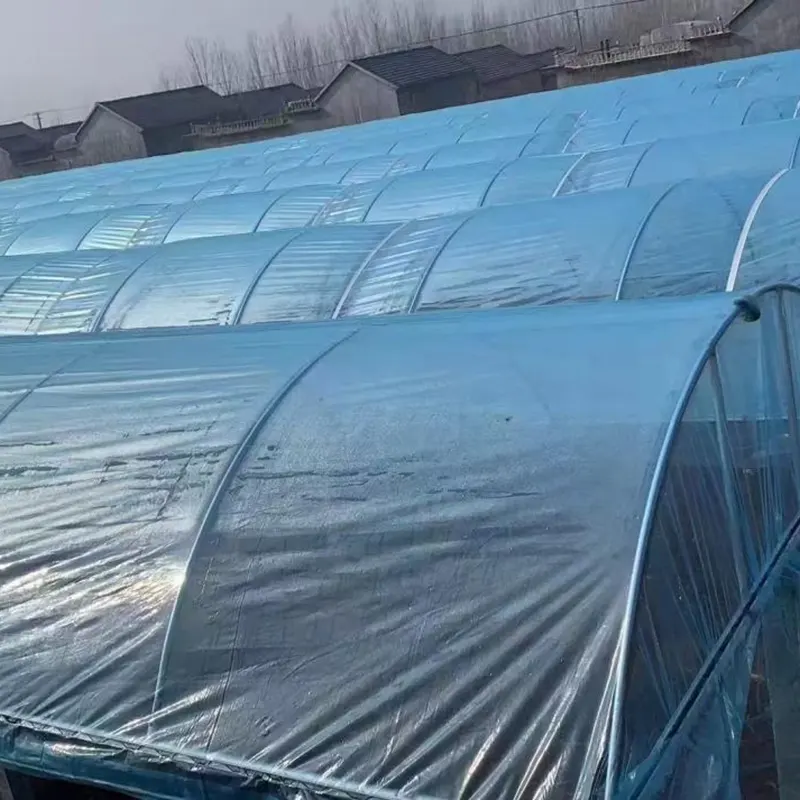

Curved Roof and Rainwater Control

The roof uses a curved structure with full rainproof film coverage. During rainfall, water runs along the curved covering toward the drainage channels on both sides instead of falling directly onto the grape clusters.

• Curved roof for overhead rain protection
• PO rainproof film covering
• Side drainage channels for guided rainwater discharge
• Reduced direct wetting of fruit clusters and leaves

Keeping rain away from the fruiting area helps reduce the conditions associated with prolonged wetness. It can also help reduce the risk of fruit cracking caused by excessive water absorption, although actual crop results depend on grape variety, rainfall, cultivation management and local climate.

Designed Around Vineyard Trellises

Vineyards do not all use the same training system, so the shelter height and span can be planned around the existing cultivation structure. The shoulder height and arch height can be adjusted to provide sufficient room for branches and leaves while avoiding interference with pruning and canopy management.

This makes the shelter suitable for grape-growing systems that require enough vertical and lateral space for pruning, training, harvesting and routine vineyard work.

Ventilation Without Fully Enclosing the Vineyard

The shelter is open around the sides rather than functioning as a sealed greenhouse. Manual or electric side roll-up film systems can be added when the vineyard needs more flexible control of ventilation during different weather conditions.

During hot periods, the side film can be opened to improve air movement and reduce heat accumulation under the roof. In combination with insect netting, the system can provide a balance between ventilation and crop protection.

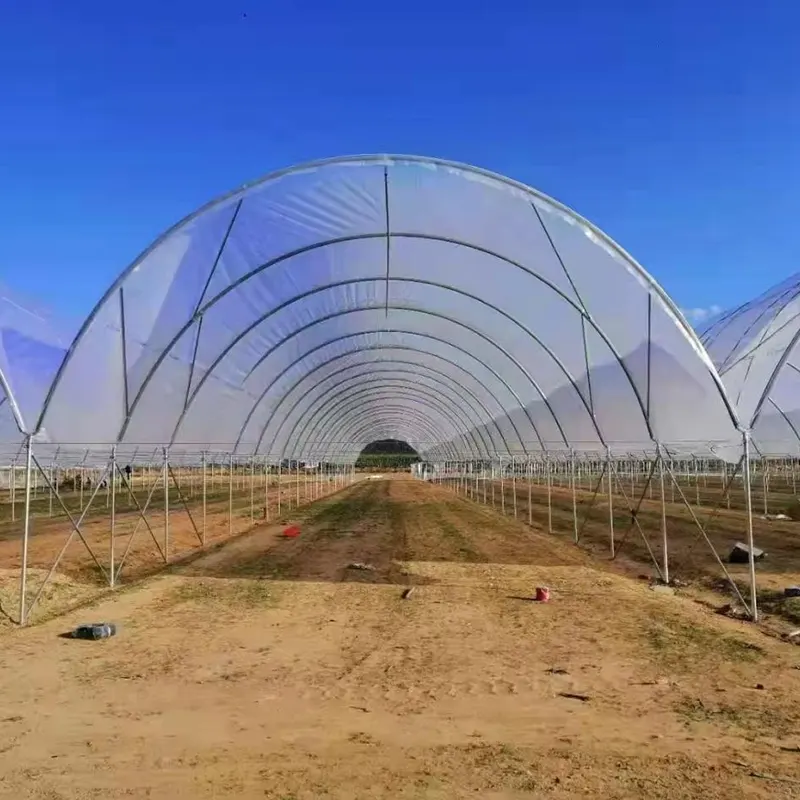

Galvanized Steel Frame

The main frame uses round steel tubing formed into curved arches and treated with acid cleaning, hot-dip galvanizing and passivation. This surface treatment is intended to improve resistance to rain, moisture, oxidation and outdoor exposure.

The frame components are prefabricated at the factory and assembled with connection fittings rather than requiring on-site welding. This simplifies installation and is particularly useful for overseas vineyard projects where access to welding equipment or professional welders may be limited.

• Curved round-steel arch structure
• Hot-dip galvanized corrosion protection
• Factory-prefabricated components
• Connection-based assembly without field welding

Drainage for Rainy Vineyards

Rainwater management is an important part of the shelter design. The roof directs water toward the side drainage channels, while the vineyard ground can be planned with raised planting ridges where necessary to reduce standing water around the root zone.

For regions with frequent rainfall, the drainage layout should be coordinated with the vineyard's existing irrigation and ground-drainage arrangement so that roof runoff can be discharged efficiently away from the planting rows.

Configuration Reference

Built for Larger Vineyard Layouts

The shelter can be installed as individual structures or arranged across larger planting areas. For connected vineyard projects, spaces between shelter sections can be reserved for tractors, harvesting transport vehicles and other agricultural operations.

Large-scale layouts can also incorporate roll-up ventilation, insect protection, drainage channels and drip irrigation interfaces as part of a coordinated vineyard plan.

Light Transmission and Fruit Protection

The covering uses high-light-transmission PO rainproof film so that the shelter can protect grape clusters from direct rain without turning the vineyard into a fully enclosed growing space. The sides can be opened when ventilation and additional natural light are needed.

This combination is intended to reduce unnecessary changes to the vineyard's normal growing environment while addressing one of the main risks of rainy-season cultivation: prolonged wetting of leaves and fruit.

Applications

The Grape Rain Shelter is suitable for vineyard projects where rainfall protection is an important part of crop management.

• Commercial table grape production bases
• Wine grape vineyards
• Grape picking and sightseeing farms
• Family-farm grape cultivation
• Overseas fruit-growing engineering projects
• Small and medium-sized premium fruit farms

Optional Vineyard Systems

The shelter can be combined with the supporting systems specified for grape cultivation, allowing the structure to be adapted to local rainfall, wind and management practices.

• Manual or electric side roll-up ventilation system
• Insect net package
• Rainwater collection and drainage channels
• Drip irrigation and water-fertilizer interface components
• Thickened UV-resistant rainproof film
• Reinforced wind-resistant connection fittings

Project Customization

The structure can be adjusted according to rainfall, wind conditions, grape variety and the existing vineyard support system. Ruize can customize frame thickness, arch spacing and film specifications while coordinating the shelter dimensions with the height of the grape trellis.

For overseas projects, layout drawings, assembly videos and online technical coordination can be provided to support installation. The modular frame sections are also prepared for reinforced export packing and container transportation.

Maintenance and Replacement

The galvanized steel frame is intended for long-term outdoor use, with the supplied product information indicating a service life of more than 10 years under suitable conditions. Routine inspection should focus on the arch frame, connection fittings, film, drainage channels and ventilation system.

Because the structure uses standardized prefabricated components, original frame fittings, film, roll-film devices and connection components can be supplied for later replacement and maintenance.

Frequently Asked Questions

Will the rain shelter reduce sunlight needed for grape growth?

The shelter uses high-light-transmission PO rainproof film, while the sides can be opened for ventilation and additional natural light. The actual light environment depends on the film specification, vineyard layout and local weather conditions.

Can the shelter work with different grape trellis systems?

Yes. The shoulder height and arch height can be adjusted according to the existing grape support structure. This allows the shelter to accommodate different cultivation layouts without unnecessarily restricting canopy management.

How is rainwater discharged from the shelter?

Rainwater flows along the curved roof toward the drainage channels on both sides. The vineyard ground can also be arranged with raised planting ridges where necessary to help reduce standing water around the root zone.

Can the shelter leave enough room for tractors and harvesting vehicles?

Yes. For connected vineyard projects, the layout can reserve working paths between shelter sections. The required width can be planned according to the dimensions of the tractors, transport vehicles or other equipment used on the farm.

What can be done to improve film durability in high-UV areas?

A thickened UV-resistant rainproof film can be specified for areas with stronger ultraviolet exposure. The selected film should match the local climate and expected outdoor service conditions.
