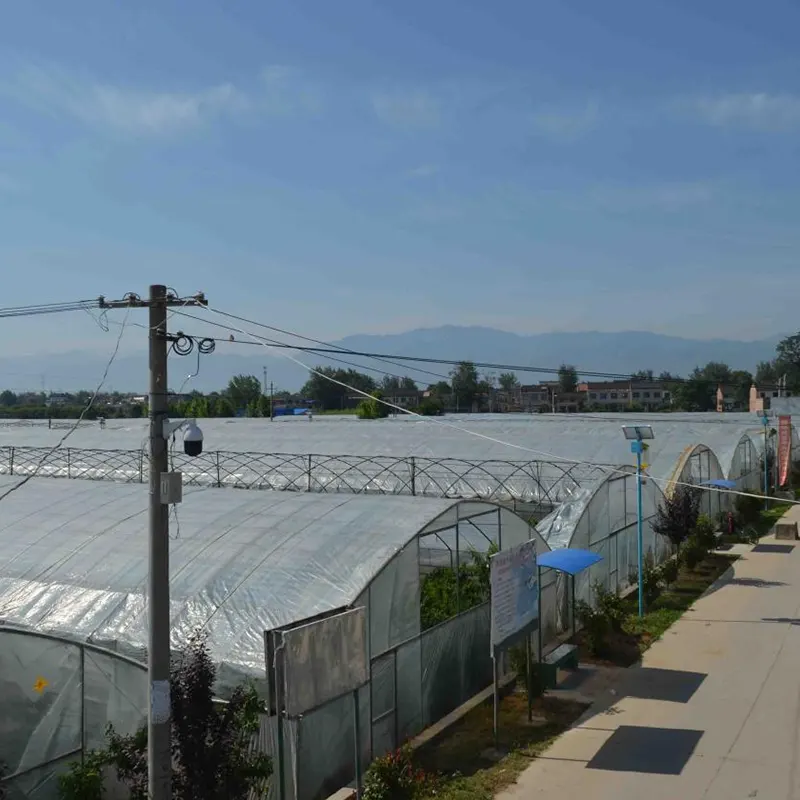

Blueberry Rain Shelter

Ruize manufactures the Blueberry Rain Shelter in China for blueberry farms, berry production bases and specialty fruit-growing projects. Unlike taller grape rain shelters, this structure is designed around the relatively low height of blueberry bushes, with the frame, roof and ventilation arrangement planned to suit blueberry cultivation and routine field management.

Blueberries have shallow root systems and can be affected by excessive moisture. Their fruit can also crack after rainfall, while prolonged humidity increases the risk of gray mold. At the same time, blueberries are not well suited to excessive direct sunlight. The shelter therefore focuses on keeping rain away from the fruit and planting area while maintaining ventilation and a softer light environment.

Low and Narrow Arch for Blueberry Plants

The frame uses a low and narrow curved structure that follows the typical height of blueberry bushes. This keeps the shelter compact while leaving sufficient growing space for branches and foliage.

• Low structure matched to blueberry bush height
• Narrow arch profile for softer light distribution
• Suitable for routine pruning and harvesting work
• Applicable to both level and sloping blueberry sites

The arch spacing, frame thickness and overall shelter dimensions can be adjusted according to the blueberry variety, local wind conditions and rainfall.

Rain Protection for Fruit and Root Zones

The entire roof is covered with weather-resistant rainproof film. Rainwater flows along the covered surface toward the drainage channel outside the planting area instead of repeatedly falling directly onto the berries and planting ridges.

This helps reduce prolonged wetting of fruit and foliage and limits excess water around the shallow root zone. For sites with frequent rainfall, the planting ridges can also be raised as part of the drainage arrangement to move water away from the roots more quickly.

Why Drainage Matters for Blueberries

Because blueberry roots are relatively shallow, standing water around the planting area can create unfavorable growing conditions. The shelter therefore works together with side drainage and suitable ridge layout rather than relying only on the roof covering to manage rainfall.

Soft Light and Side Ventilation

The narrow arch design helps distribute incoming light more softly, reducing the direct exposure that can affect the appearance of blueberry fruit under strong sunlight. An optional soft-light, high-transmission PO film can be used according to the project requirements.

Ventilation is handled through the side of the shelter, where manual roll-up film or an electric roll-up system can be installed. The sides can be opened when temperatures rise, allowing heat and moisture to leave the growing area.

Insect netting can also be incorporated with the side ventilation arrangement, providing a way to maintain airflow while adding the required pest-protection function.

Two Blueberry Growing Modes

The shelter can be arranged for both ground-grown and container-grown blueberries. For ground cultivation, the planting ridge and drainage layout can be coordinated with the shelter structure. For container cultivation, dedicated placement supports can be added according to the project arrangement.

Prefabricated Galvanized Frame

The shelter frame uses curved galvanized steel components that are prefabricated before installation. The supplied production process includes acid cleaning, hot-dip galvanizing and passivation to improve outdoor corrosion resistance.

Arch frames, columns and connection components are prepared as standardized parts and assembled with bolts and fittings. This avoids on-site welding for the main structure and makes installation more practical for small and medium-sized overseas blueberry farms.

• Lightweight curved steel frame
• Hot-dip galvanized corrosion protection
• Factory-prefabricated components
• Bolted assembly without field welding

Designed for Vineyard-style Layouts? No — Designed for Blueberry Rows

The shelter can be planned across a larger blueberry growing area, with working paths left between sections for picking and routine management. For connected farms, the spacing can be arranged around the width of small agricultural equipment and the needs of field workers.

For irregular or sloped sites, the arch spacing and individual shelter length can be adjusted to follow the site layout. Drainage direction can also be considered when arranging the planting rows.

Configuration for Different Sites

The structure can be adjusted according to local rainfall, wind conditions and blueberry varieties. Frame thickness, arch spacing, shelter length and the light-transmission characteristics of the covering can be coordinated around the actual cultivation environment.

For areas with stronger ultraviolet exposure, an anti-UV rainproof film can be selected according to the local conditions. The final film specification should take sunlight intensity and expected outdoor use into account.

Applications

The Blueberry Rain Shelter is intended for blueberry projects where rainfall protection, root-zone drainage and light management are important parts of cultivation.

• Large-scale blueberry berry farms
• Container blueberry growing farms
• Premium blueberry picking gardens
• Small fruit farms in hilly areas
• Overseas berry agriculture projects
• Blueberry sightseeing and picking bases

Optional Supporting Systems

The shelter can be equipped with the supporting systems listed for blueberry cultivation, with each option selected according to the site's conditions and management method.

• Manual or electric side roll-up ventilation film
• High-density insect net
• Drainage channels for shallow-root cultivation
• Container blueberry placement supports
• Drip irrigation and water-fertilizer components
• UV-resistant soft-light rainproof film

Export and Installation Support

Ruize prepares the lightweight arch components and related fittings before shipment. The frame is divided into sections and packed in a reinforced format suitable for container transportation, making the system practical for small and medium-sized overseas orders.

Installation drawings, step-by-step assembly videos and technical materials can be provided for overseas projects. Original frame components, film and roll-up accessories can also be supplied later for replacement and maintenance.

Maintenance and Replacement

The lightweight structure and standardized components make routine maintenance relatively straightforward. Regular checks should focus on the galvanized frame, connection fittings, rainproof film, ventilation components and drainage channels.

Because the covering is independently maintained, damaged film can be replaced without rebuilding the complete shelter structure. This is useful for blueberry farms operating over multiple growing seasons.

Frequently Asked Questions

How does the shelter help protect blueberry roots from excess water?

The roof keeps direct rainfall away from the planting area, while side drainage channels guide collected water away from the rows. Raised planting ridges can also be used to improve drainage around the shallow root system.

Will the rain shelter reduce the light needed by blueberries?

The structure uses a low and narrow arch design, and a soft-light, high-transmission PO film can be selected. The sides can also be opened for additional natural light and ventilation when required.

Can container-grown blueberries be placed inside the shelter?

Yes. The shelter can be configured for container-grown blueberries, and dedicated placement supports can be added according to the container arrangement and available growing space.

Is the low shelter height inconvenient for pruning and harvesting?

The structure is planned around the typical height of blueberry bushes and routine manual field work. The final shelter height can be adjusted according to the blueberry variety and cultivation method.

Can the shelter be installed on sloped or irregular land?

Yes. Arch spacing and individual shelter length can be adjusted according to the site. The layout and drainage direction can also be coordinated with the slope of the land to help prevent concentrated rainwater from flowing toward the planting ridges.
