Farm operators planning connected growing areas can procure Multi-Span Arch Greenhouses from Ruize Steel, a China manufacturer of agricultural greenhouse structures. Featuring curved arch roofs, an open interior and primarily film coverings, these greenhouses offer an economical option for vegetable and fruit production, seedling cultivation and small to medium-sized agricultural parks. Multiple span widths are available to suit different land areas, machinery access requirements and cultivation methods.
The integrated curved arch structure distributes loads across the frame and, compared with flat-roof designs, can facilitate rainwater drainage and snow shedding. Standardized components and batch production also support efficient manufacturing and practical project delivery.
Integrated Arch Forming: Arch components are formed with fewer welded joints, reducing potential corrosion points.
Curved Roof Structure: The arched profile distributes structural loads and helps rainwater and snow slide off, depending on roof geometry and weather conditions.
Multiple Span Options: Small, medium and large spans accommodate different farm sizes, planting layouts and machinery requirements.
Economical Production: Standardized components and batch manufacturing help control production costs and support efficient delivery.

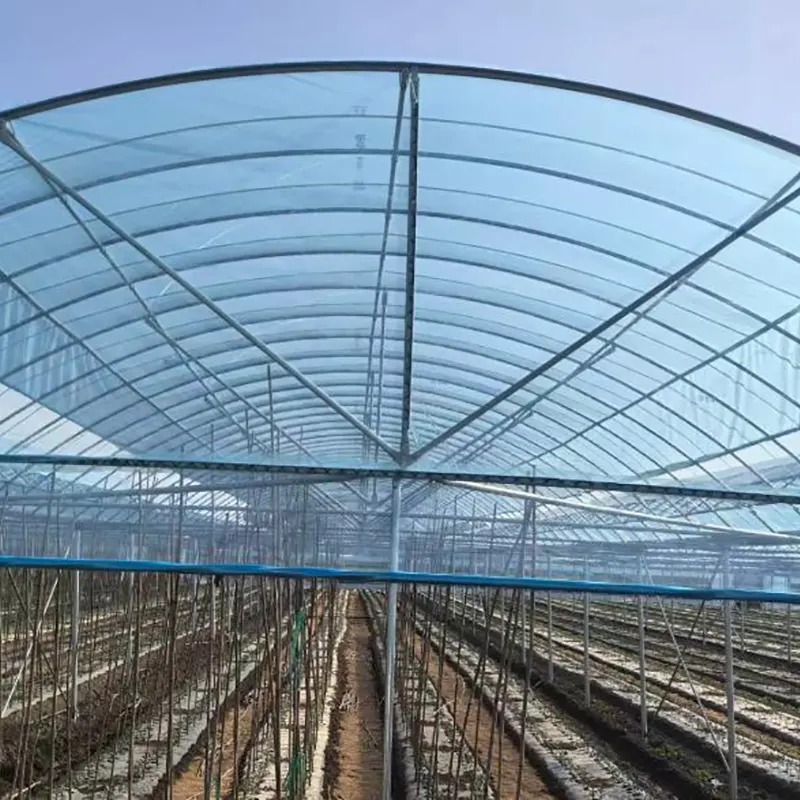

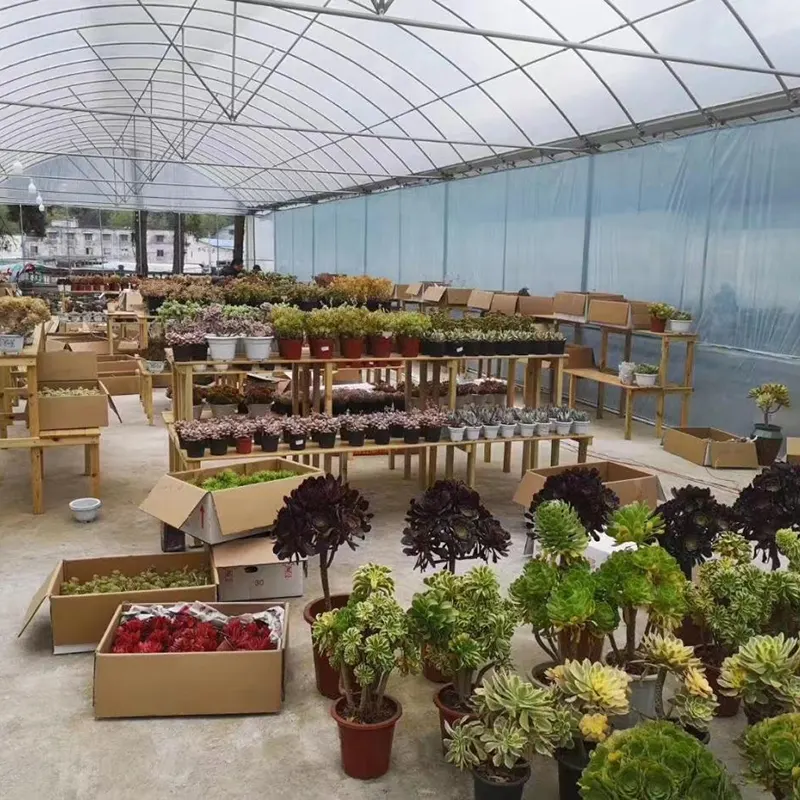

| Comparison Item | Small-Span Arch Greenhouse | Medium-Span Arch Greenhouse | Large-Span Arch Greenhouse |
|---|---|---|---|
| Standard Single-Span Width | 6–8 m | 9–12 m | 14–16 m |
| Internal Access | Primarily manual operations; limited suitability for large machinery | Suitable for small agricultural machinery and transport carts | Designed to accommodate larger agricultural machinery, subject to layout |
| Frame Thickness | Standard lightweight steel sections | General-purpose reinforced steel sections | Reinforced heavy-duty main beams and columns |
| Layout Flexibility | Easy to divide into smaller growing areas | Balances connected cultivation with functional zoning | Large continuous growing area; later subdivision may require more work |
| Relative Cost per Unit Area | Lowest initial cost | Moderate, with a balance of space and cost | Higher, suited to long-term large-scale projects |
| Wind and Snow Loads | Standard load configuration | General-purpose load configuration for a wide range of locations | Reinforced configuration for areas with more demanding wind and snow conditions |
| Main Growing Applications | Container growing, seedling production and small-scale fruit and vegetable cultivation | Commercial production of vegetables, fruits and flowers | Hydroponics, intensive cultivation and smart agriculture projects |
| Overseas Project Suitability | Small and medium-sized overseas farms | General-purpose configuration for international agricultural projects | Large agricultural parks and integrated project contracts |
Arch Alignment: Align adjoining arch components accurately to maintain a consistent roof curve.
Bolted Connections: Tighten all bolts at frame joints to reduce movement under wind loads.
Gutter Drainage: Set the gutter slope according to the drainage design to prevent water accumulation.
Film Installation: Fit the film closely to the curved frame and secure it properly to avoid excessive tension, looseness or water pockets.
Inspect After Severe Weather: Check the frame for deformation after periods of strong wind or heavy snowfall and reinforce or correct components where necessary.
Check Connections Annually: Inspect bolts and connecting parts for corrosion or wear, replacing damaged components as needed.
Replace Aging Film: Renew deteriorated greenhouse film promptly to maintain weather protection and limit moisture exposure to the steel frame.
Multi-Span Arch Greenhouses are suitable for commercial vegetable and fruit production, seedling farms, flower cultivation and small to large agricultural parks. The span can be selected according to the growing system, machinery access, available land and project budget.
Choose a small span for compact farms and manual operations, a medium span for general commercial cultivation, or a large span for mechanized production and intensive growing systems.
Arch greenhouses generally have lower construction costs, faster installation and less expensive film replacement. Venlo greenhouses are more commonly used for projects requiring specialized glass structures or high-end growing and display facilities.
Reinforced frames and curved roofs can support snow management, but the structure must be designed for local snow loads. Additional steel reinforcement may be required.
The source specifications indicate approximately 10 years of use without widespread corrosion under normal conditions. Coastal and highly corrosive environments may require enhanced galvanized protection and regular inspection.
Standardized film channels and retaining springs simplify replacement. The correct film dimensions and compatible accessories should be used.
Yes. Steel components can be supplied separately, with layout drawings and installation guidance so customers can source film, fans and other materials locally.
The large-span model uses reinforced structural components where specified. Frame dimensions, connections and foundations must be engineered for the intended loads and site conditions.
Some basic accessories may be compatible, but main beams, arches and columns are span-specific and should not be mixed unless compatibility is confirmed.
Roof and side vents, fans, cooling pads and internal or external shading can be combined as needed. Actual temperature reduction depends on climate, equipment capacity and greenhouse design.
Yes, a photovoltaic-supporting structure can be considered for all three span sizes. The frame must be specifically engineered for panel weight, wind loads and other additional structural requirements.
