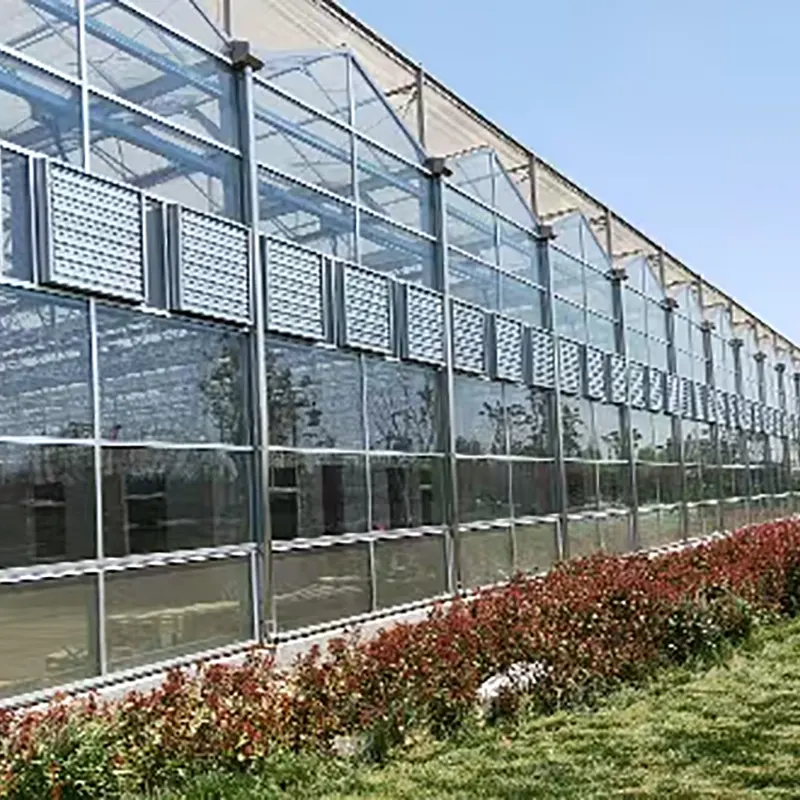

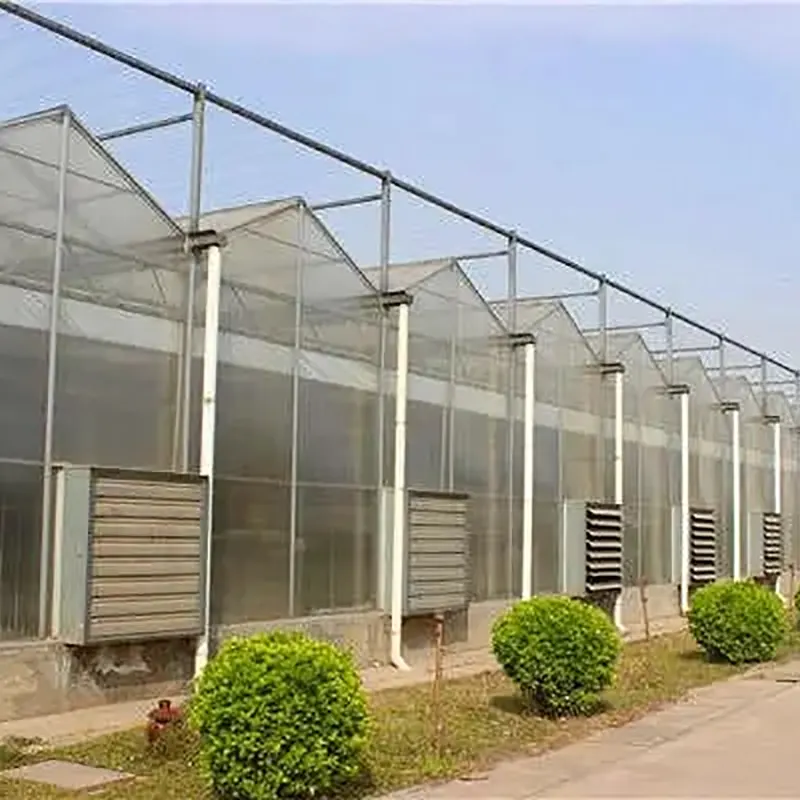

Multi-Span Double-Layer Hollow Glass Greenhouse

For agricultural projects where winter heat retention is more demanding than a single-glazed structure can provide, the Multi-Span Double-Layer Hollow Glass Greenhouse creates an insulating layer between two glass panes to reduce heat transfer. Ruize Steel works as a supplier with its own factory, offering customized greenhouse dimensions, reinforced structural specifications, insulation equipment, environmental-control systems, and integrated solutions for cold-region commercial cultivation and research projects.

The greenhouse combines double-layer tempered float glass with a reinforced hot-dip galvanized steel structure. The sealed air space between the two glass layers provides an additional thermal barrier, helping reduce heat loss during winter while retaining the transparency and clean appearance associated with glass greenhouse structures.

Compared with single-layer glass, the double-glazed structure provides better thermal insulation and can reduce the heating demand of the greenhouse in cold weather. Compared with Low-E glazing, it offers a simpler glazing configuration for projects seeking an alternative balance between insulation performance and initial system complexity.

The structure is suitable for high-latitude and high-altitude regions, areas with frequent frost and snowfall, overwintering cultivation, temperature-controlled nursery production, premium flowers, specialty fruits and vegetables, and other agricultural projects where stable winter growing conditions are important.

Product Features

1. Double-Layer Sealed Tempered Hollow Glass

The Multi-Span Double-Layer Hollow Glass Greenhouse uses double-layer tempered float glass with a sealed dry-air cavity between the panes. Aluminum spacers and a double-sealing system help maintain the integrity of the insulating layer and reduce the risk of moisture entering the cavity.

• Improved thermal insulation: The sealed air layer reduces heat transfer between the greenhouse interior and the outdoor environment, helping retain heat during cold periods.
• Higher safety than ordinary glass: Tempered glass provides improved impact resistance and, when broken, generally fragments into smaller granular pieces rather than long sharp shards.
• High light transmission: Light transmission can reach more than 87% depending on the glass specification, providing sufficient natural light for vegetables, flowers, and nursery production.
• Stable sealed cavity: Properly manufactured insulating glass is designed to maintain a dry internal cavity and reduce fogging or water accumulation between the panes.
• Easy-to-clean surface: The smooth outer glass surface allows rainwater to wash away surface dust, reducing the need for frequent manual cleaning.

Under suitable outdoor conditions, the insulating glass can provide a service life of more than 10 years, depending on glass specification, sealing quality, climate, installation, and maintenance.

2. Reinforced High-Load Hot-Dip Galvanized Steel Structure

Because double-glazed glass is heavier than single-layer glazing, the greenhouse frame uses reinforced and widened carbon steel components according to the structural requirements of the project.

The main steel components are processed with surface preparation, rust removal, and hot-dip galvanizing to improve resistance to corrosion and outdoor exposure. The structure can be specified for humid, snowy, and coastal environments according to local conditions.

The frame can be designed for higher wind and snow loads than a standard single-glazed greenhouse. Modular bolted assembly reduces the need for on-site welding, while reinforced glazing profiles help improve the overall sealing performance of the enclosure.

With suitable material selection, installation, inspection, and maintenance, the steel structure can be configured for long-term agricultural use.

3. High Sealing Performance for Overwintering Cultivation

The Multi-Span Double-Layer Hollow Glass Greenhouse can use double-layer waterproof aluminum profiles and low-temperature-resistant sealing strips around the glass joints to reduce air leakage and water penetration.

The improved sealing structure helps retain internal heat during cold periods and creates a more stable growing environment. It can be combined with thermal insulation blankets, hot-water heating, hot-air heating, and automatic temperature-control systems for winter cultivation.

This configuration is particularly suitable for commercial growing projects where stable temperature conditions are required during low-temperature seasons.

4. Designed for Cold Regions with a Practical Performance Balance

The insulating glass structure helps reduce heat loss and can lower the demand placed on winter heating systems. It is intended for projects that require better thermal performance than a single-glazed greenhouse while maintaining a transparent rigid enclosure.

Compared with more specialized coated glazing solutions, the double-glazed configuration can provide a practical option for agricultural projects with specific insulation requirements and controlled project budgets.

Optional Supporting Systems

1. Severe Cold and High-Altitude Areas

• Internal thermal insulation blankets
• Hot-water heating systems
• Hot-air heating systems
• Wind-resistant side curtains
• Freeze-resistant drainage gutters

2. High-Humidity Nursery Facilities

• Air circulation fans
• Dehumidification and ventilation systems
• Constant temperature and humidity control cabinets
• Integrated fertigation systems

3. High-Temperature Summer Conditions

• Internal and external shading systems
• Roof ventilation windows
• Forced ventilation equipment
• Wet curtain cooling systems

4. Smart Agricultural Parks

• IoT-based remote monitoring
• Mobile environmental control
• Automatic greenhouse equipment management
• Remote temperature and humidity monitoring

Quality Control and Export Packaging

The insulating glass undergoes sealing and drying checks, while tempered glass is inspected according to the applicable production requirements. Steel components are processed with reinforced hot-dip galvanizing for corrosion protection.

For overseas projects, greenhouse components are packed with reinforced wooden frames and moisture- and rust-resistant protection. Glass panels are secured with dedicated protective materials and corner guards to reduce the risk of breakage during long-distance sea and inland transportation.

The packaging arrangement is organized according to the greenhouse structure and component sequence to support safer handling, unloading, and installation at the destination.

After-Sales Service

• Complete greenhouse construction drawings
• Chinese and English installation videos
• Detailed installation instructions
• 24/7 bilingual online technical support
• Remote assistance for temperature control, sealing, and equipment commissioning
• On-site engineering guidance for larger overseas overwintering projects
• Technical training for local installation and operation teams
• Long-term supply of insulating glass, sealing strips, steel components, and other original accessories

Why Choose Multi-Span Double-Layer Hollow Glass Greenhouse?

1. Improved Thermal Insulation

The sealed air cavity between the two glass panes helps reduce heat transfer and improve heat retention during winter cultivation, which can reduce the operating demand of heating equipment.

2. Tempered Double-Glazing for Outdoor Use

Using tempered glass for both layers provides improved impact resistance and safety characteristics compared with ordinary untreated glass, while maintaining the transparent appearance required for greenhouse cultivation.

3. Stable Light Transmission

The insulating glass can provide more than 87% light transmission depending on the glass specification, helping maintain suitable natural light for vegetables, flowers, seedlings, and other crops.

4. Reinforced Structure for Cold-Weather Projects

The greenhouse frame can be reinforced according to local wind and snow loads, making it suitable for agricultural facilities in areas exposed to frost, snowfall, and demanding winter conditions.

5. Integrated Cold-Climate Configuration

The greenhouse can accommodate thermal insulation blankets, heating systems, ventilation, humidity control, fertigation, and smart environmental monitoring to create a more controlled winter cultivation environment.

FAQ

1. How should I choose between a double-layer hollow glass greenhouse and a single-layer glass greenhouse?

A single-layer glass greenhouse can be suitable for moderate climates with relatively mild winters and limited snow. A double-layer hollow glass greenhouse is more appropriate when winter heat retention is a major requirement, particularly in areas with long winters, frequent frost, or snowfall.

2. Can the insulating glass cavity become foggy or collect water?

Properly manufactured insulating glass uses dry spacers and a sealed cavity to reduce moisture penetration. A qualified double-sealing process helps maintain the dry internal space. Actual performance depends on glass manufacturing quality, seal integrity, installation, and long-term environmental exposure.

3. Will double-layer glass reduce light transmission significantly?

The additional glass layer slightly affects light transmission compared with single-layer glazing, but the insulating glass can still provide more than 87% light transmission depending on the glass specification. This is generally sufficient for many greenhouse crops when the overall greenhouse design provides appropriate natural lighting.

4. Is additional heating still necessary in extremely cold regions?

Double-glazed glass helps reduce heat loss, but the required heating system depends on outdoor temperature, greenhouse size, crop requirements, glazing specification, sealing performance, and the desired internal temperature. In extremely cold climates, additional heating and thermal insulation systems may still be necessary.

5. How long can the glass and steel frame be used?

Under suitable outdoor conditions, the insulating glass can provide a service life of more than 10 years, while the galvanized steel structure can also be used for long-term agricultural applications. Actual service life depends on material quality, climate, installation, inspection, and maintenance.

6. Can the glass thickness and greenhouse dimensions be customized?

Yes. Glass specifications, greenhouse span, bay spacing, eave height, overall dimensions, ventilation configuration, and structural components can be adjusted according to local wind and snow loads, land conditions, crop requirements, and project specifications.

7. What growing applications are suitable for this greenhouse?

It is suitable for overwintering flowers, premium strawberries and tomatoes, specialty medicinal plants, nursery production, high-altitude agricultural demonstration parks, research cultivation, and other commercial projects requiring improved winter temperature stability.

8. Are bulk overseas orders supported?

Yes. Large connected agricultural projects, overseas contractors, distributors, and bulk orders can receive project-based support such as customized design, detailed engineering coordination, production scheduling, export packaging, technical documentation, and after-sales assistance.
