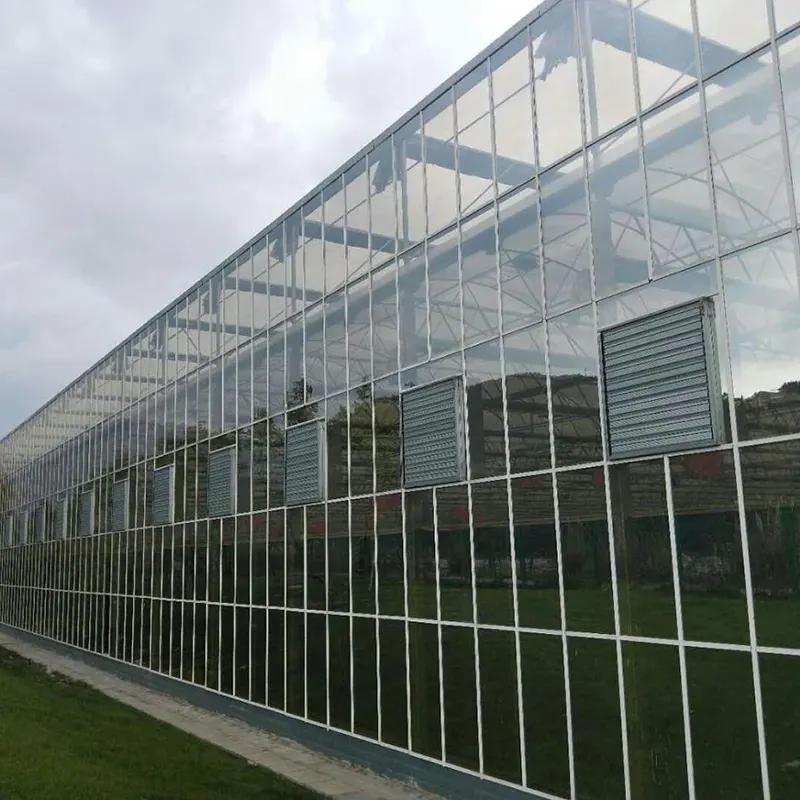

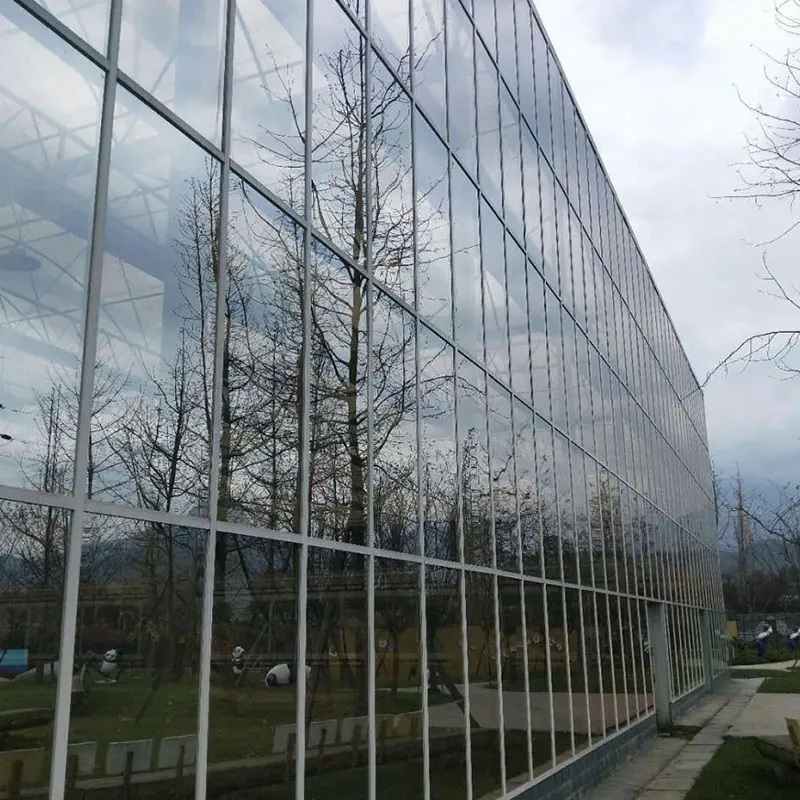

Hollow PC Plate Multi-Span Greenhouse

For cultivation projects where a durable rigid covering is preferred over conventional film, the Hollow PC Plate Multi-Span Greenhouse provides a combination of insulation, natural light, structural protection, and long-term service. Ruize Steel supplies complete greenhouse systems through its own factory, with panel configurations, structural dimensions, sealing components, and optional environmental-control systems selected according to climate, crops, site conditions, and project requirements.

The greenhouse uses double-layer, multi-layer, or honeycomb hollow polycarbonate panels combined with a hot-dip galvanized steel frame. The air cavities inside the panels help reduce heat exchange, while the translucent surface distributes sunlight more evenly throughout the growing area.

Compared with film-covered structures, hollow PC panels are more resistant to tearing and do not require regular seasonal film replacement. Compared with glass, polycarbonate panels are lighter and less vulnerable to shattering during impact. This makes the structure suitable for cold regions, high-altitude areas, and locations exposed to strong winds or hail, as well as premium cultivation, nursery production, agricultural demonstrations, research facilities, and tourism-oriented agricultural projects.

Product Features

1. Multi-Layer Hollow Polycarbonate Panels

The Hollow PC Plate Multi-Span Greenhouse uses hollow polycarbonate panels manufactured from new-grade raw materials. Double-layer, four-layer, and honeycomb structures can be selected according to insulation and structural requirements. A UV-resistant surface coating can be applied to improve outdoor weather resistance.

• Enhanced thermal insulation: The air cavities inside the panels reduce heat exchange between the greenhouse interior and exterior, helping maintain more stable temperatures during cold periods.
• Soft and diffused light: The panel structure distributes sunlight more evenly, reducing intense direct light and helping create a more uniform growing environment.
• Impact resistance: Polycarbonate has good toughness and can better withstand hail, wind-driven debris, and other common impacts than more brittle rigid glazing materials.
• UV and weather resistance: The UV protective layer helps reduce yellowing, surface degradation, and light-transmission loss caused by prolonged outdoor exposure.
• Water and condensation control: Properly sealed panel systems reduce water penetration and help limit uncontrolled dripping from the roof into the growing area.

Under normal outdoor conditions, the panels can provide a service life of approximately 5–10 years depending on panel specification, UV exposure, climate, installation quality, and maintenance. The overall greenhouse structure can be designed for long-term use, with the galvanized steel frame capable of serving for more than 10 years under suitable conditions.

2. Hot-Dip Galvanized Load-Bearing Steel Structure

The main frame uses quality carbon steel processed through surface cleaning, rust removal, and hot-dip galvanizing to improve corrosion resistance.

The galvanized coating helps protect the structure against moisture, oxidation, acid rain, and salt exposure. For projects in coastal or highly humid environments, structural specifications can be selected according to local corrosion and weather conditions.

The Hollow PC Plate Multi-Span Greenhouse adopts a large-span, high-clearance multi-span configuration. Structural specifications can be determined according to local wind and snow loads, providing stable support in areas where stronger weather resistance is required.

Bolted assembly reduces the need for on-site welding and helps maintain an orderly installation process. The rigid panel system also provides a neat architectural appearance, making it suitable for premium agricultural parks, demonstration facilities, and visitor-oriented agricultural projects.

3. High-Sealing Structure for Stable Internal Conditions

The roof and surrounding walls can use dedicated waterproof aluminum profiles, sealing strips, and matching waterproof accessories to form a more enclosed panel system.

A properly sealed structure helps reduce uncontrolled air leakage and water penetration. This makes it easier to maintain relatively stable temperature and humidity conditions inside the greenhouse, which is useful for precision nursery production, specialty crops, and cultivation projects requiring a more controlled growing environment.

The final sealing performance depends on panel installation, profile design, door and ventilation configuration, local climate, and maintenance condition.

4. Long-Term Rigid Covering and Smart Agriculture Compatibility

Hollow PC Plate Multi-Span Greenhouses are designed as long-term agricultural structures rather than seasonal film-covered facilities. The rigid panels do not need to be replaced every year, while their solid construction can reduce routine covering maintenance.

The clean and transparent appearance is suitable for agricultural demonstration parks, research facilities, greenhouse visitor centers, premium planting projects, and tourism-oriented agriculture.

The greenhouse can also accommodate smart agricultural equipment, including:

• Automatic shading systems
• Ventilation and cooling systems
• Heating and insulation equipment
• Integrated fertigation systems
• IoT environmental monitoring
• Remote greenhouse control systems

PC Greenhouse Type Comparison

Different PC covering structures provide different combinations of insulation, transparency, impact resistance, structural weight, and project cost. The appropriate option should be selected according to climate, crop requirements, safety requirements, and the intended operating environment.

1. Hollow PC Plate Multi-Span Greenhouse

• Positioning: Thermal-insulation-oriented rigid greenhouse for cold climates, overwintering cultivation, nursery production, research, and agricultural demonstration projects
• Main advantages: Good thermal insulation, relatively light weight, impact resistance, diffused light, moderate structural cost, and reduced covering maintenance
• Consideration: The hollow structure is generally less resistant to concentrated impact than a solid polycarbonate panel of comparable specification
• Typical applications: Cold-region cultivation, seedling propagation, flowers, agricultural demonstration parks, and long-term commercial growing facilities

2. Solid PC Plate Multi-Span Greenhouse

• Positioning: Transparent rigid greenhouse for applications requiring a smooth, solid panel surface
• Main advantages: High transparency, flat panel appearance, solid construction, and useful durability for protected cultivation spaces
• Consideration: Without the internal air cavities of hollow panels, thermal insulation is generally lower than that of a comparable hollow PC panel
• Typical applications: Moderate-climate premium cultivation, visitor facilities, display-oriented agricultural buildings, and applications emphasizing transparency

3. Solid PC Impact-Resistant Multi-Span Greenhouse

• Positioning: High-impact rigid greenhouse for areas exposed to severe weather or demanding safety requirements
• Main advantages: Solid panel construction, high impact resistance, strong toughness, and high transparency
• Consideration: The solid panel structure generally requires a higher material specification and does not provide the same insulation effect as a hollow panel with an internal air layer
• Typical applications: Hail-prone areas, high-wind coastal regions, research facilities, and projects with higher impact-resistance requirements

Selection Guide

• For thermal insulation, overwintering cultivation, long-term use, and agricultural demonstration projects, a hollow PC panel structure can be considered.
• For a smooth, highly transparent rigid covering and general protected cultivation, a solid PC panel structure can be considered.
• For severe weather, higher impact resistance, and demanding structural protection, a solid impact-resistant PC panel can be considered.

Optional Supporting Systems

Supporting systems can be added according to the local climate, crop type, greenhouse size, and environmental-control requirements.

1. Cold and High-Altitude Areas

• Internal thermal insulation blankets
• Hot-air heating systems
• Dual-path wind protection systems
• Freeze-resistant drainage systems

2. High-Temperature and High-Light Areas

• Automatic external shading
• Internal shading
• Roof ventilation windows
• Air circulation and cooling systems

3. High-Humidity Nursery Facilities

• Humidity-control and dehumidification systems
• Constant temperature and humidity control
• Integrated fertigation equipment

4. Smart Agricultural Parks

• IoT environmental monitoring
• Mobile remote control
• Automatic integrated cultivation systems
• Environmental data management

Quality Control and Export Packaging

Ruize Steel applies standardized quality control throughout the manufacturing process. Inspection includes steel frame galvanizing, PC panel UV coating verification, waterproof and sealing checks, component dimensions, structural assembly, and load-related quality checks.

For overseas projects, greenhouse components are packed with protection against impact, moisture, corrosion, scratches, and deformation. Corner protection and reinforced packaging are used where appropriate to reduce the risk of damage during long-distance sea and inland transportation.

The packing arrangement is organized according to the greenhouse structure and installation sequence, helping simplify handling and assembly after the shipment arrives at the project site.

After-Sales Service and Global Support

Technical support is available for overseas greenhouse projects from installation through routine operation.

• Complete construction drawings
• 3D greenhouse layout plans
• Detailed installation documents
• Installation guidance videos
• 24/7 online technical support in English and Chinese
• Remote assistance for installation and operation
• On-site engineering guidance for larger overseas projects
• Installation team training and project acceptance support
• Long-term supply of original panels, accessories, sealing materials, and replacement components

Why Choose a Hollow PC Panel Greenhouse?

1. Stronger Thermal Insulation

The hollow air cavities inside the panels help reduce heat exchange and improve the greenhouse's thermal performance, making the structure suitable for cold-weather cultivation and overwintering applications.

2. Long-Term Covering Performance

Compared with seasonal film coverings, rigid PC panels are not normally replaced every year. UV protection and proper installation can help extend the service life of the covering under outdoor conditions.

3. More Stable Growing Environment

The enclosed panel system, together with suitable ventilation, heating, shading, and environmental-control equipment, can help growers manage temperature and humidity more consistently.

4. Clean and Durable Appearance

The rigid PC panel exterior provides a neat, modern appearance and is suitable for premium agricultural parks, research facilities, demonstration projects, and visitor-oriented greenhouse applications.

5. Factory-Based Customization

Ruize Steel can configure panel layers, greenhouse dimensions, structural components, sealing systems, ventilation, shading, heating, and smart agricultural equipment according to the actual project requirements.

Frequently Asked Questions

1. What is the main advantage of a hollow PC panel greenhouse?

The main advantage is the combination of thermal insulation, impact resistance, diffused light, and long-term rigid covering performance. The hollow air layer helps improve heat retention, while the polycarbonate material provides greater toughness than many conventional glazing materials.

2. How is a hollow PC greenhouse different from a film greenhouse?

A film greenhouse uses a flexible covering that is relatively easy to replace but generally has a shorter service life. A hollow PC panel greenhouse uses rigid panels with internal air cavities, providing greater structural stability, better impact resistance, and improved thermal insulation.

3. What are the advantages compared with a glass greenhouse?

Polycarbonate panels are lighter than glass and have good impact resistance. They are less prone to shattering under impact and can provide useful thermal insulation when a hollow panel structure is used.

4. Does the hollow PC panel provide sufficient light transmission?

Yes. Hollow polycarbonate panels are designed to transmit natural light while diffusing part of the incoming light. This can create a more even illumination environment inside the greenhouse and reduce concentrated direct light on crops.

5. Can the greenhouse be used during extremely cold weather?

Yes. The hollow panel structure can provide improved thermal insulation, but the actual winter performance depends on outdoor temperature, panel specifications, greenhouse dimensions, sealing, ventilation, crop requirements, and whether additional heating and insulation systems are installed.

6. Will the PC panels turn yellow or become brittle?

UV-protected polycarbonate panels are designed to resist outdoor UV exposure and weathering. Actual service life and appearance depend on panel quality, protective coating, climate, installation, cleaning, and long-term exposure conditions.

7. Are different hollow panel structures available?

Yes. Double-layer, four-layer, and honeycomb hollow PC panels can be selected according to insulation requirements, structural specifications, light transmission requirements, and project conditions.

8. Does the greenhouse require regular maintenance?

The rigid panel covering generally requires less frequent replacement than film, but routine inspection is still recommended. Panels, sealing strips, profiles, drainage components, doors, and ventilation systems should be checked and cleaned periodically.

9. What crops are suitable for a hollow PC panel greenhouse?

The greenhouse can be used for premium vegetables, flowers, nursery plants, medicinal crops, seedling propagation, research cultivation, demonstration projects, and other crops requiring a more controlled growing environment.

10. Can the greenhouse be customized for overseas projects?

Yes. Greenhouse span, height, panel structure, frame specifications, sealing components, ventilation, shading, heating, fertigation, and smart control systems can be configured according to site conditions, climate, crop requirements, and project objectives.
